Raceworks 260 Series PTFE Braided Hose
Raceworks 260 Series PTFE Braided Hose
SKU: SKU: RWH-260-03-1M
Couldn't load pickup availability
Raceworks 260 Series PTFE Braided Hose
Description:

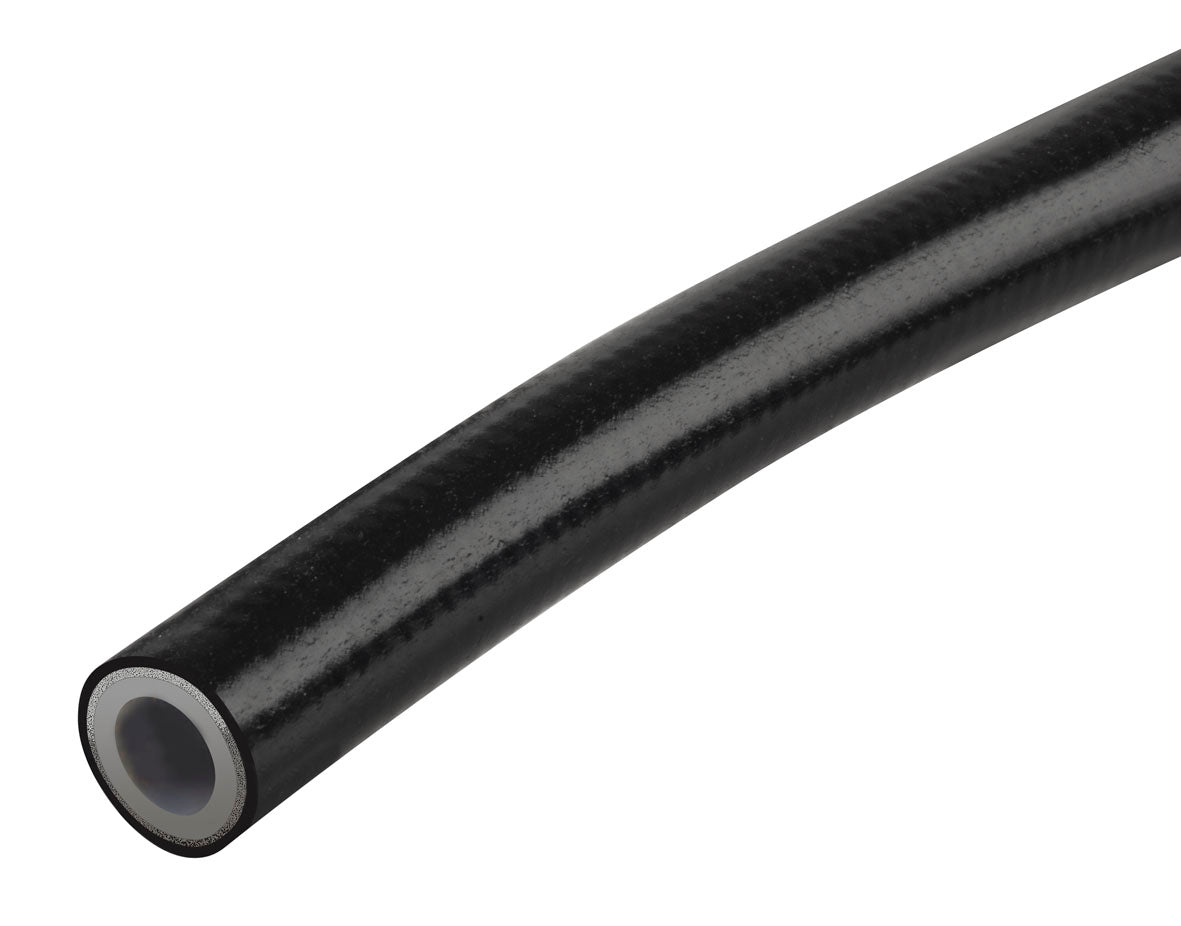

Raceworks 260 Series PTFE Braided Hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE tube is covered by a stainless steel outer cover that is then covered with a Black PVC cover for extra durability, and resistance to abrasion and expansion. The Raceworks 260 Series Hose is commonly used in braking and clutch systems. All Raceworks products come with a 2 year warranty.
Long lengths (greater than 10M) can be specially ordered. Please enquire with your Raceworks Dealer.
Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|
| AN-3 | 3000psi | 10000psi | 9/64″ | 3.6mm | 9/32″ | 7.35mm | 1.0″ | 26mm |
