Raceworks 600 Series Aluminium Hard Line
Raceworks 600 Series Aluminium Hard Line
Regular price
$49.99 AUD
Regular price
Sale price
$49.99 AUD
Unit price
/
per
Tax included.
SKU: SKU: RWH-600-05
Couldn't load pickup availability
Raceworks 600 Series Aluminium Hard Line
Description:

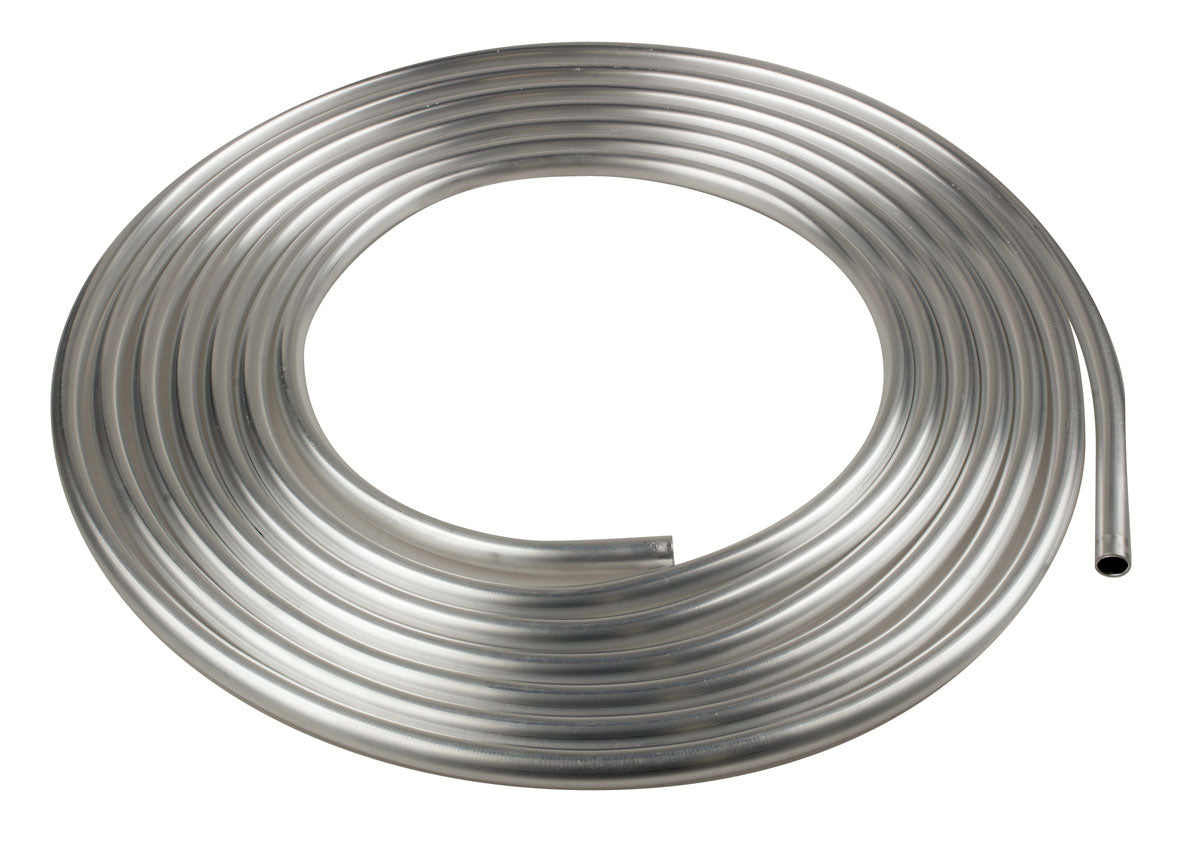

Raceworks 600 Series Hard Line is extruded from lightweight, seamless aluminium tube, and is available in four sizes.
All rolls are 7m in length
Wall Thickness of 1mm.
Ethanol and Methanol Safe.
| 7M Length Part Number | AN | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Finish |
|---|---|---|---|---|---|---|---|---|---|
| RWH-600-05 | -5 | 1400psi | 2100psi | 15/64″ | 5.9mm | 5/16″ | 7.9mm | 61g | Raw |
| RWH-600-06 | -6 | 1100psi | 1700psi | 19/64″ | 7.5mm | 3/8″ | 9.5mm | 75g | Raw |
| RWH-600-08 | -8 | 550psi | 1100psi | 27/64″ | 10.7mm | 1/2″ | 12.7mm | 104g | Raw |
| RWH-600-10 | -10 | 420psi | 550psi | 35/64″ | 13.9mm | 5/8″ | 15.8mm | 128g | Raw |
