Raceworks 620 Series Black Hardline Aluminium
Raceworks 620 Series Black Hardline Aluminium
Regular price
$52.99 AUD
Regular price
Sale price
$52.99 AUD
Unit price
/
per
Tax included.
SKU: SKU: RWH-620-05
Couldn't load pickup availability
Raceworks 620 Series Black Hardline Aluminium
Description:

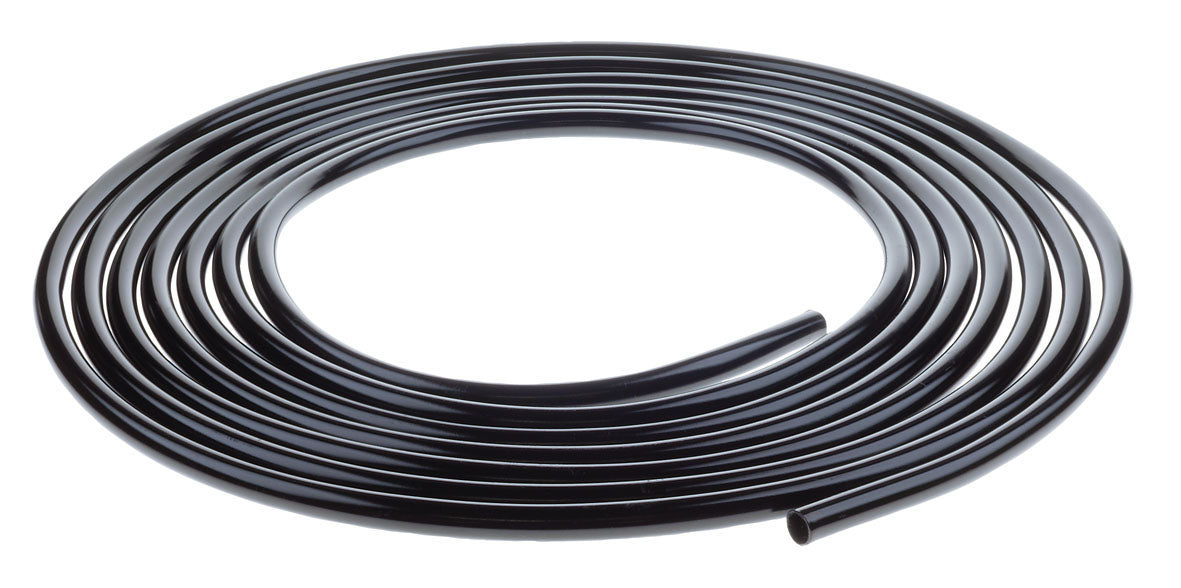

Raceworks 620 Series Black Aluminium Hard Line is extruded from lightweight, seamless aluminium tube. It is available in four different sizes, and we recommend using a tube bender, to minimise flaking of the black coating on the bends. Should this happen, it has no effect on the integrity and corrosion resistance of the aluminium line.
Wall thickness of 1mm. Ethanol & Methanol safe.
All Rolls are 7m in Length
| 7M Length Part Number | AN | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Finish |
|---|---|---|---|---|---|---|---|---|---|
| RWH-620-05 | -5 | 1400psi | 2100psi | 15/64″ | 5.9mm | 5/16″ | 7.9mm | 61g | Black Anodised Outer, Raw Inner |
| RWH-620-06 | -6 | 1100psi | 1700psi | 19/64″ | 7.5mm | 3/8″ | 9.5mm | 75g | Black Anodised Outer, Raw Inner |
| RWH-620-08 | -8 | 550psi | 1100psi | 27/64″ | 10.7mm | 1/2″ | 12.7mm | 104g | Black Anodised Outer, Raw Inner |
| RWH-620-10 | -10 | 420psi | 550psi | 35/64″ | 13.9mm | 5/8″ | 15.8mm | 128g | Black Anodised Outer, Raw Inner |
